B-Tech VESA 100 x 100
VESA 100 x 100 Mounts available from Airwave.
For small flat screen TVs up to 23"
-

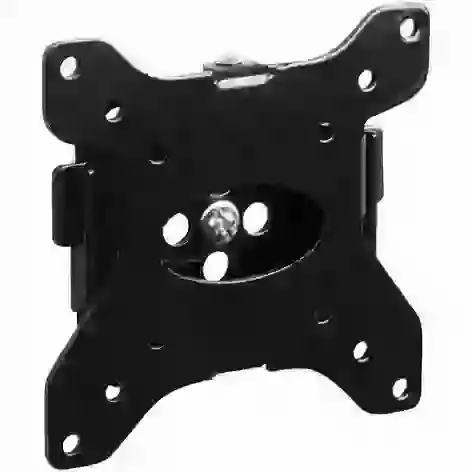

BT7510
Flat Screen Wall Mount with TiltBT7510
BT7510
BT7510
Designed for small flat screens up to 23” (58cm) / 20kg (44lbs)
- Fits screens with VESA mounting patterns:
- 50 x 50mm, 75 x 75mm and 100 x 100mm
- Ultra-slim design mounts screen only 15mm (0.6”) from the wall
- Features ‘OWLS’ On Wall Levelling System
- Security locking screws and Allen key provided for secure installation
- Simple ‘hook-on’ installation with all mounting hardware included
- Available in Black and Silver
-

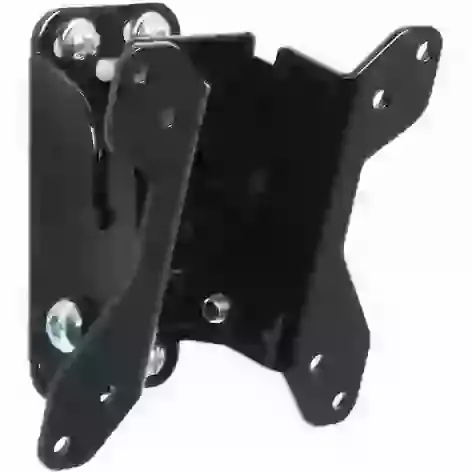

BT7511
Flat Screen Wall Mount with TiltBT7511
BT7511
BT7511
Designed for small flat screens up to 23” (58cm) / 20kg (44lbs)
- Fits screens with VESA mounting patterns:
- 75 x 75mm and 100 x 100mm
- Easy tilt adjustment +17°/-10°
- Mounts screen only 55mm (2.1”) from the wall
- Features ‘OWLS’ On Wall Levelling System
- Security locking screws and Allen key provided for secure installation
- Simple ‘hook-on’ installation with all mounting hardware included
- Available in Black and Silver
-

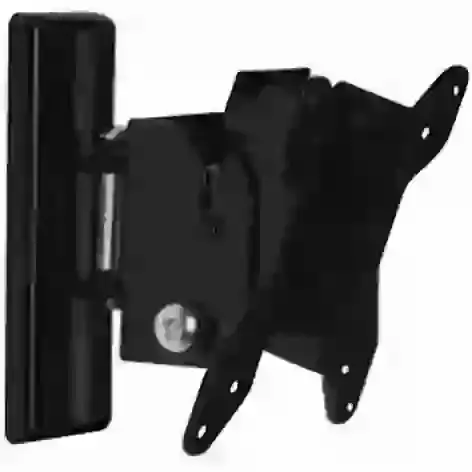

BT7518
Flat Screen Wall Mount with Tilt and SwivelBT7518
BT7518
BT7518
- Fits 75 x 75mm VESA mounting patterns
- Mounts screens 93mm from wall
- Tilts +17°/-10° and swivels 50° (depends on screen size)
- Allows 360° rotation of screen in any direction to display screen in landscape or portrait style
- Features post installation screen levelling
- Simple ‘hook-on’ installation with all mounting hardware included
- Supplied with pin hex security screws for added security
-
BT7512

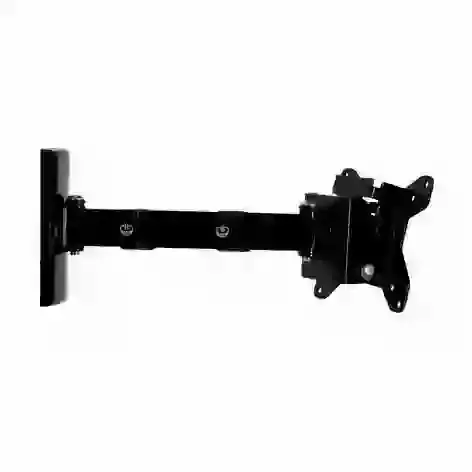

Single Arm Flat Screen Wall Mount with Tilt and SwivelBT7512
BT7512
BT7512
Designed for small flat screens up to 23” (58cm) / 15kg (33lbs)
- Fits screens with VESA mounting patterns: 75 x 75mm and 100 x 100mm
- Easy tilt adjustment +17°/-10°
- Features two swivel points: 180° at wall and 240° at interface
- CLIPLOGIC™ cable management included
- 360° rotation for easy screen levelling and to allow screen to be mounted in landscape or portrait style
- Security locking screws and Allen key provided for secure installation
- Simple ‘hook-on’ installation with all mounting hardware included
- Available in Piano Black and Silver
-

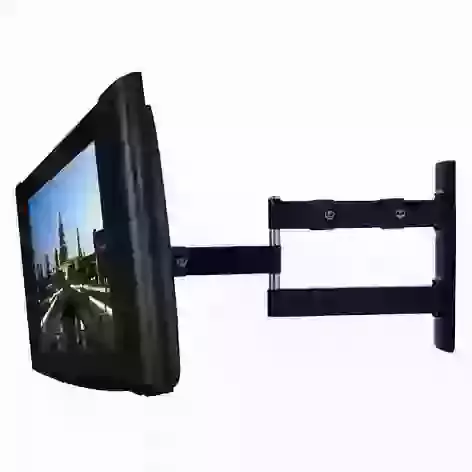

BT7513
Double Arm Flat Screen Wall Mount with Tilt and SwivelBT7513
BT7513
BT7513
Designed for small flat screens up to 23” (58cm) / 15kg (33lbs)
- Fits screens with VESA mounting patterns: 75 x 75mm and 100 x 100mm
- Easy tilt adjustment +17°/-10°
- Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
- CLIPLOGIC™ cable management included
- 360° rotation for easy screen levelling and to allow screen to be mounted in landscape or portrait style
- Security locking screws and Allen key provided for secure installation
- Simple ‘hook-on’ installation with all mounting hardware included
- Available in Piano Black and Silver
