Exterity SD Encoders

Standard definition Exterity Encoders available from Airwave

  • e2635

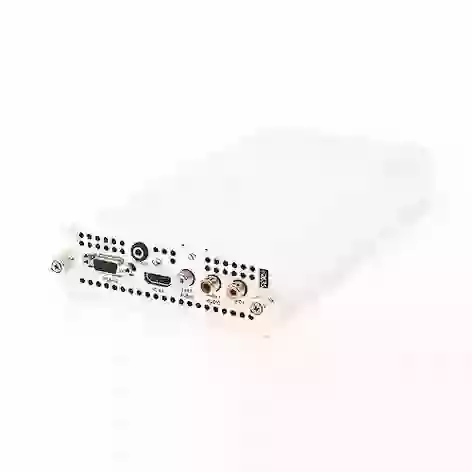

    AvediaStream e2635 IPTV Encoder

    e2635

    e2635

    e2635

    Use the e2635 to encode and distribute content from sources with VGA or component video outputs such as Blu-
    Ray/DVD Players, set top boxes, digital cameras, digital signage systems and PCs.

    • Accepts video inputs up to 1080p and encodes at resolutions from 240p to 525i/625i
    • Accepts wide range of video input resolutions and scales to standard TV resolutions
    • MPEG-2 or H.264 video encoding
    • SD or Sub-SD encoding
    • MPEG-2 AAC or MPEG-1 Layer II audio encoding
    • Video input options: HD AV, RGBHV or YPbPr
    • Frame rate and audio sample rate conversion
  • e2655

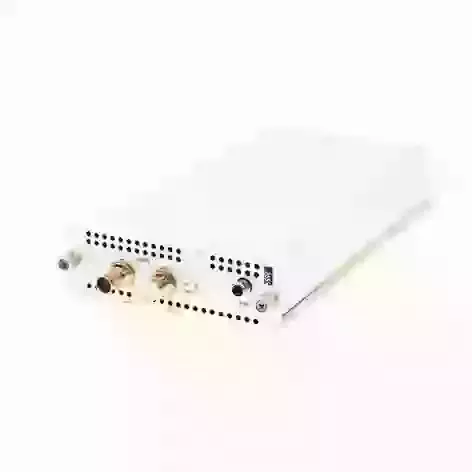

    AvediaStream e2655 IPTV Encoder

    e2655

    e2655

    e2655

    Use the Exterity AvediaStream e2655 Encoder to deliver SD, MPEG-2 or H.264, streams from the SDI outputs of broadcast video.

    • MPEG-2 or H.264 video encoding
    • SD or Sub-SD encoding
    • MPEG-2 AAC or MPEG-1 Layer II audio encoding
    • Video input options up to 3G SDI
    • Audio input options: Embedded audio or S/PDIF
    • Frame rate and audio sample rate conversion
    • SDI pass-through output for chaining devices
    • Embedded system for high reliability and low power consumption
  • e2310

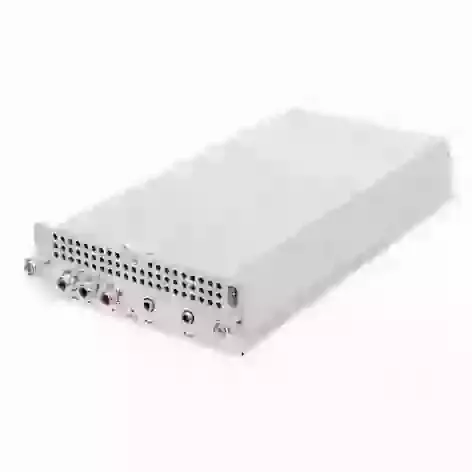

    AvediaStream e2310 IPTV encoder

    e2310

    e2310

    e2310

    Use the Exterity e2310 encoder to stream content from a DVD player, set-top box or digital video camera.

    • Outputs MPEG-2 Transport Stream over UDP or RTP as IP multicast or unicast stream
    • Dual encoder in single blade for cost-effective installations
    • MPEG-2 or H.264 video encoding
    • SD or Sub-SD encoding
    • Video inputs: Composite, SD Component, RGBS, S-Video
    • Audio inputs: Unbalanced Stereo
    • Hot swap blade allows quick and non-intrusive upgrade to existing installations using Exterity chassis options (c1101, c1103, c1110)
    • Embedded system for high reliability and low power consumption
