Ultra-Slim Brackets
-

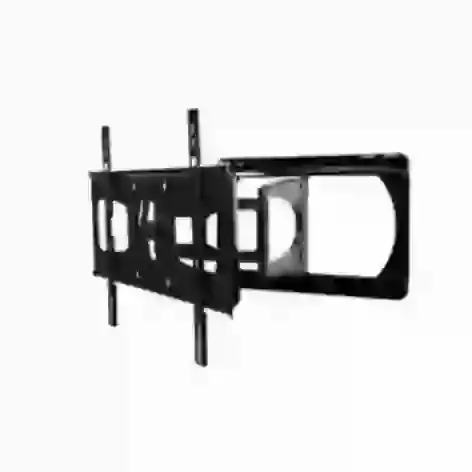

SUA765PU
SUA765PU
Product Features
-
Dual-arm design enhances the stability of the articulating motion
-
Arm retracts to 1.24" (32mm) and extends up to 23.56" (598mm) from the wall
-
One-Touch™ tilt mechanism allows adjustment of +15°/-5° without the use of tools
-
Up to ±72.5° of side-to-side swivel
-
Dual stud wall plate allows for perfect mount placement
-
Universal mounting hole pattern, fits up to 854 x 439mm (33.60" x 17.27") and VESA® 100 x 100, 200 x 100, 200 x 200, 400 x 200, 400 x 400 and 800 x 400mm compliant
-
-
SUA751PU
SUA751PU
Product Features
- ±5° of roll offers a simple way to horizontally level the display post-installation
- Up to ±90° of side-to-side swivel
- +15/-5° of One-Touch™ tilt allows for ideal viewing angles without the use of tools
- Universal mount fits displays with mounting hole patterns up to 825 x 439mm (32.49" x 17.27") and VESA® 200 x 100, 200 x 200, 400 x 200 and 400 x 400mm and 800 x400mm compliant
- Two-screw wall attachment allows for a fast installation
- Arm retracts to only 1.34" (34mm) and extends up to 24.19" (615mm) from the wall
-

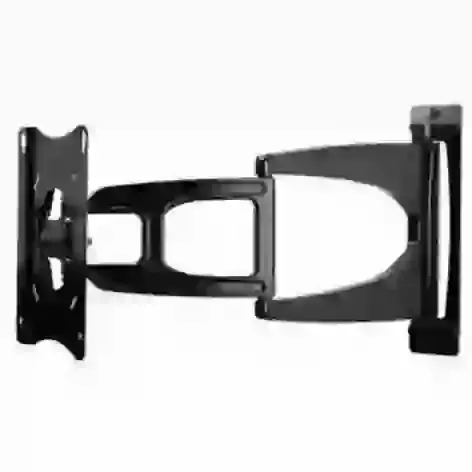

SUA746PU
SUA746PU
Product Features
- Two-screw wall attachment allows for a fast installation
- ±5° of roll offers a simple way to horizontally level the display post-installation
- Up to ±90° of side-to-side swivel
- +15/-5° of One-Touch™ tilt allows for ideal viewing angles without the use of tools
- Arm retracts to only 1.27" (32mm) and extends up to 24.15" (613mm) from the wall
- Universal mount fits displays with mounting hole patterns up to 450 x 402mm (17.73" x 15.81") and VESA® 200 x 100, 200 x 200, 400 x 200 and 400 x 400mm compliant
-
SUA737P
SUA737P
Product Features
-
±5° of roll offers a simple way to horizontally level the display post-installation
-
Up to ±90° of side-to-side swivel
-
+15/-5° of One-Touch™ tilt allows for ideal viewing angles without the use of tools
-
Arm retracts to only 1.29” (33mm) and extends up to 24.17” (614mm) from the wall
-
Universal mount fits displays with VESA® mounting hole patterns of 200x200 and 200x100mm
-
Two-screw wall attachment allows for a fast installation
-
-

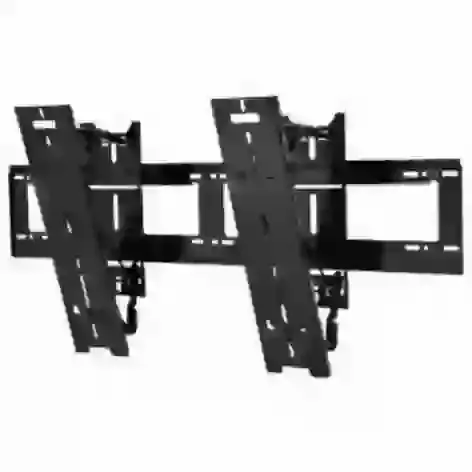

SUT660P
SUT660P
Product Features
- Display adapters simply hook onto wall plate for quick and easy installation
- Lockdown tab prevents display from unwanted bump-off or horizontal shifting
- Display can be held off the wall more than 5.5" (140 mm) allowing for hands-free full access to the back of the display
- Tilt range of +17.5°/-5° to position the display at the ideal viewing angle
- Innovative tilt mechanism allows for easy setting of the tilt angle in just one motion
- Compatible with ultra-thin displays with up to VESA® 800 x 400 mm mounting hole pattern
- Holds display 0.68" (17 mm) from the wall in the closed position
- Horizontal adjustment up to 8" (203 mm) for perfect display placement
-

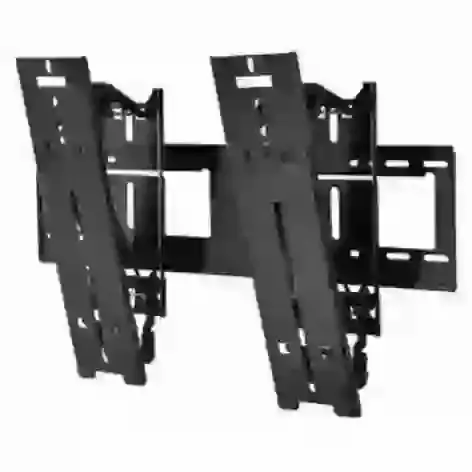

SUT645P
SUT645P
Product Features
-
Display adapter simply hooks onto wall plate for quick and easy installation
-
Horizontal adjustment up to 6" (152 mm) for perfect display placement
-
Display can be held off the wall more than 5.5" (140 mm) allowing for hands-free full access to the back of the display
-
Tilt range of +17.5°/-5° to position the display at the ideal viewing angle
-
Innovative tilt mechanism allows for easy setting of the tilt angle in just one motion
-
Compatible with ultra-thin displays with up to VESA® 600 x 400 mm mounting hole pattern
-
Holds display 0.68" (17 mm) from the wall in the closed position
-
Lockdown tab prevents display from unwanted bump-off or horizontal shifting
-
-

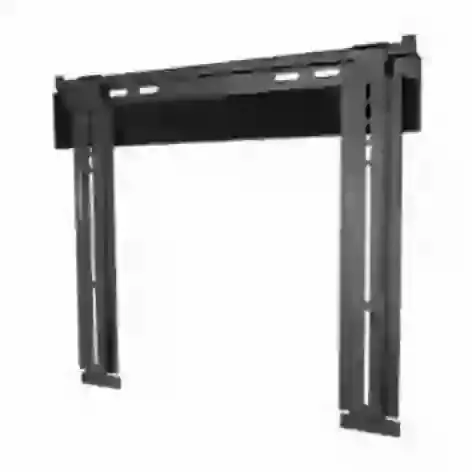

SUF640P
SUF640P
Product Features
-
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
-
Horizontal adjustment of up to 6" (152mm) (depending on display model) for perfect display placement
-
Universal brackets easily hook onto wall plate for an easy installation
-
Industrial-strength Velcro® latching system secures display adapters to wall plate in a single step, making installation fast and secure
-
Horizontal adjustment of up to 6" (152mm) (depending on display model) for perfect display placement
-
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
-
Comes with Peerless-AV Sorted-for-You™ fastener pack with all necessary display attachment hardware
-
-

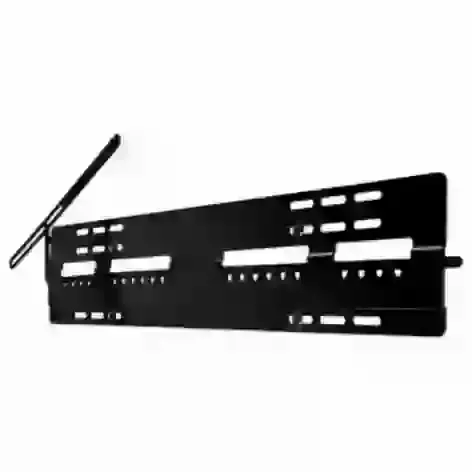

SUF651
SUF651
Product Features
- Theft resistant security screw on locking arm
- Locking arm holds flat panel display in place and prevents accidental bump-offs and unwanted horizontal adjustment
- Comes with fastener pack with all necessary display attachment hardware
- Mounts to wood studs and concrete
- Mount compatible with ultra-thin flat panel displays with 150-400mm (in 25mm increments) and 550-700mm (in 25mm increments) horizontal mounting hole patterns
- Ultra-thin design holds display only 0.19" (5mm) from the wall for a near invisible application
- Easy three-step installation, mount the wall plate, hang the flat panel display and insert the locking arm
-
SUF660P
SUF660P
Product Features
- Comes with Peerless-AV Sorted-for-You™ fastener pack with all necessary display attachment hardware
- Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
- Horizontal adjustment of up to 8" (203mm) (depending on display model) for perfect display placement
- Industrial-strength Velcro® latching system secures display adapters to wall plate in a single step, making installation fast and secure
- Universal brackets easily hook onto wall plate for an easy installation
- Universal mount compatible with ultra-thin displays with mounting patterns up to 825 x 449mm (32.48" W x 17.67" H)
- Ultra-thin design holds display only 0.33" (8mm) from the wall for a near invisible application
-

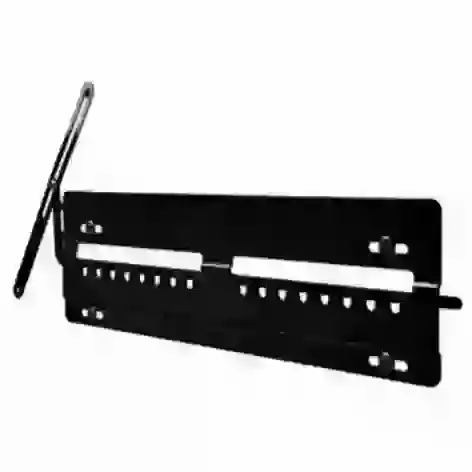

SUF641
SUF641
Product Features
- Easy three-step installation, mount the wall plate, hang the flat panel display and insert the locking arm
- Theft resistant security screw on locking arm
- Locking arm holds flat panel display in place and prevents accidental bump-offs and unwanted horizontal adjustment
- Comes with fastener pack with all necessary display attachment hardware
- Mounts to wood studs and concrete
- Mount compatible with ultra-thin flat panel displays with 75 to 425mm (in 25mm increments) horizontal mounting hole patterns
- Ultra slim design holds ultra-thin flat panel display only .19" (5mm) from the wall for a near-invisible application
-
SUF661
SUF661
Product Features
-
Theft resistant security screw on locking arm
-
Locking arm holds flat panel display in place and prevents accidental bump-offs and unwanted horizontal adjustment
-
Comes with fastener pack with all necessary display attachment hardware
-
Mounts to wood studs and concrete
-
Mount compatible with ultra-thin flat panel displays with 150-400mm (in 25mm increments), 550-800mm (in 25mm increments) horizontal mounting hole patterns
-
Ultra slim design holds ultra-thin flat panel display only .19" (5mm) from the wall for a near-invisible application
-
Easy three-step installation, mount the wall plate, hang the flat panel display and insert the locking arm
-

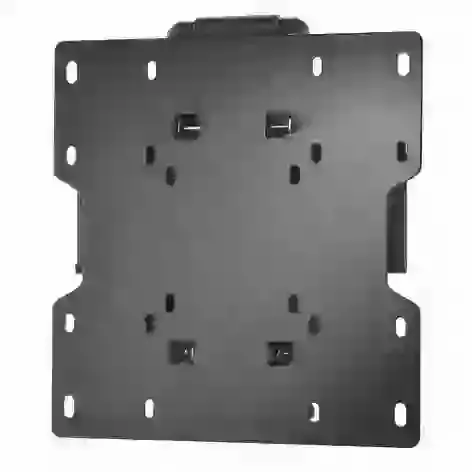

SUT632P
SUT632P
Product Features
-
Mounts to wood stud, concrete, cinder block and metal stud (metal stud accessory required)
-
Display adapter plate simply hooks onto the wall plate for quick and easy installation
-
15°/-5° tilt adjustment without the use of tools
-
Additional display adapter plates also available
-
VESA® 75 and 100, 200 x 100 and 200 x 200mm compliant
-
UL listed
