Exterity SD Encoders
Standard definition Exterity Encoders available from Airwave
-
e2635

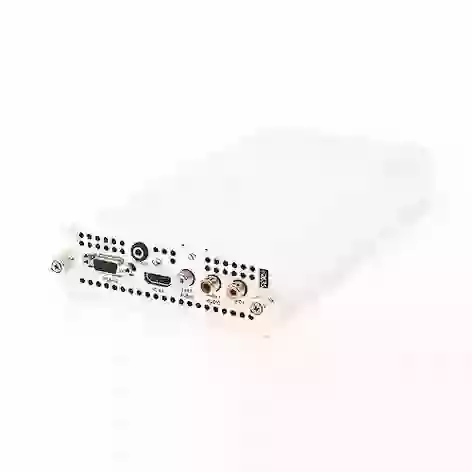

AvediaStream e2635 IPTV Encodere2635
e2635
e2635
Use the e2635 to encode and distribute content from sources with VGA or component video outputs such as Blu-
Ray/DVD Players, set top boxes, digital cameras, digital signage systems and PCs.- Accepts video inputs up to 1080p and encodes at resolutions from 240p to 525i/625i
- Accepts wide range of video input resolutions and scales to standard TV resolutions
- MPEG-2 or H.264 video encoding
- SD or Sub-SD encoding
- MPEG-2 AAC or MPEG-1 Layer II audio encoding
- Video input options: HD AV, RGBHV or YPbPr
- Frame rate and audio sample rate conversion
-
e2655

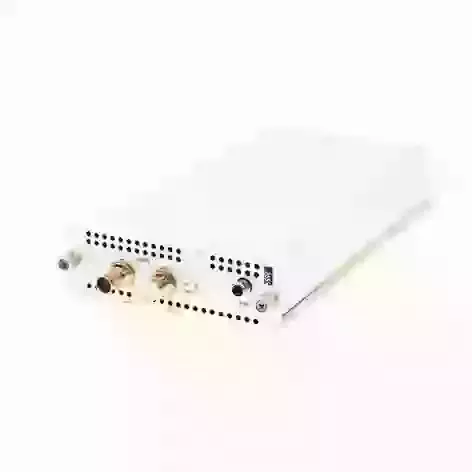

AvediaStream e2655 IPTV Encodere2655
e2655
e2655
Use the Exterity AvediaStream e2655 Encoder to deliver SD, MPEG-2 or H.264, streams from the SDI outputs of broadcast video.
- MPEG-2 or H.264 video encoding
- SD or Sub-SD encoding
- MPEG-2 AAC or MPEG-1 Layer II audio encoding
- Video input options up to 3G SDI
- Audio input options: Embedded audio or S/PDIF
- Frame rate and audio sample rate conversion
- SDI pass-through output for chaining devices
- Embedded system for high reliability and low power consumption
-
e2310

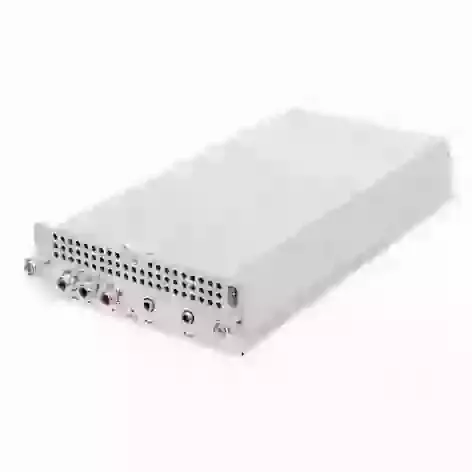

AvediaStream e2310 IPTV encodere2310
e2310
e2310
Use the Exterity e2310 encoder to stream content from a DVD player, set-top box or digital video camera.
- Outputs MPEG-2 Transport Stream over UDP or RTP as IP multicast or unicast stream
- Dual encoder in single blade for cost-effective installations
- MPEG-2 or H.264 video encoding
- SD or Sub-SD encoding
- Video inputs: Composite, SD Component, RGBS, S-Video
- Audio inputs: Unbalanced Stereo
- Hot swap blade allows quick and non-intrusive upgrade to existing installations using Exterity chassis options (c1101, c1103, c1110)
- Embedded system for high reliability and low power consumption
